22-AC

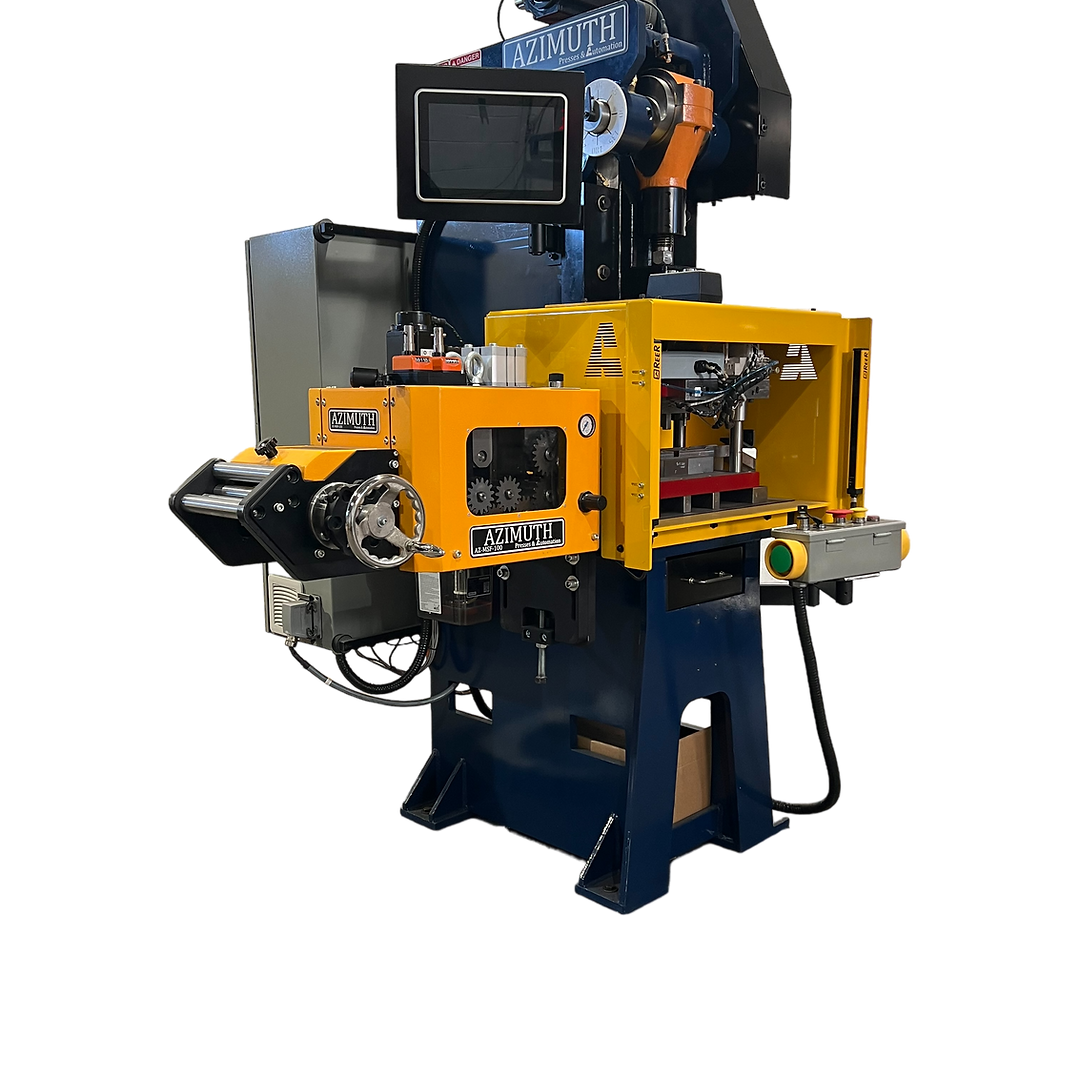

22-AC C-Frame Air-clutch press
The 22-AC is a 22-ton C-frame mechanical press with an OMPI Italian air-friction clutch running at 140 SPM. Featuring a 2.5-inch stroke and 7.25-inch throat depth, it punches and forms with consistent repeatability. A well-proven platform for shops that need reliable high-speed production on a small footprint.
Choose options
22-AC
Sale price$0.00
| Specification | Default Title |
|---|---|
| Nominal Capacity | 22 |
| Rated Tonnage from BDC | 0.125 |
| Stroke Length | 2.5 |
| SPM | 140 |
| Max Die Set Height | 7.50 |
| Die Height Adjustment | 2.50 |
| Min Die Height Adjustment | 5.00 |
| Throat Depth | 7.25 |
| Distance Between Uprights | 10 |
| RAM Size F-B | 6.50 |
| RAM Size L-R | 9.50 |
| Shank Diameter | 1.5 |
| Bolster Size F-B | 12.00 |
| Bolster Size L-R | 20.00 |
| Bolster Surface Height | 39.5 |
| Overall Size L-R | 26.00 |
| Overall Size Height | 81.00 |
| Overall Size F-B | 31.75 |
| Shank Depth | 3 |
CORE TECHNOLOGY
OMPI Air-Friction clutch
Italian design clutch & brake
It is a pneumatic clutch/brake unit with considerably reduced dimensions and inertia. The clampings to the shaft are designed (and not adapted) for the locking device fitting on brake or clutch side as to meet customer requirements.
