33-AC

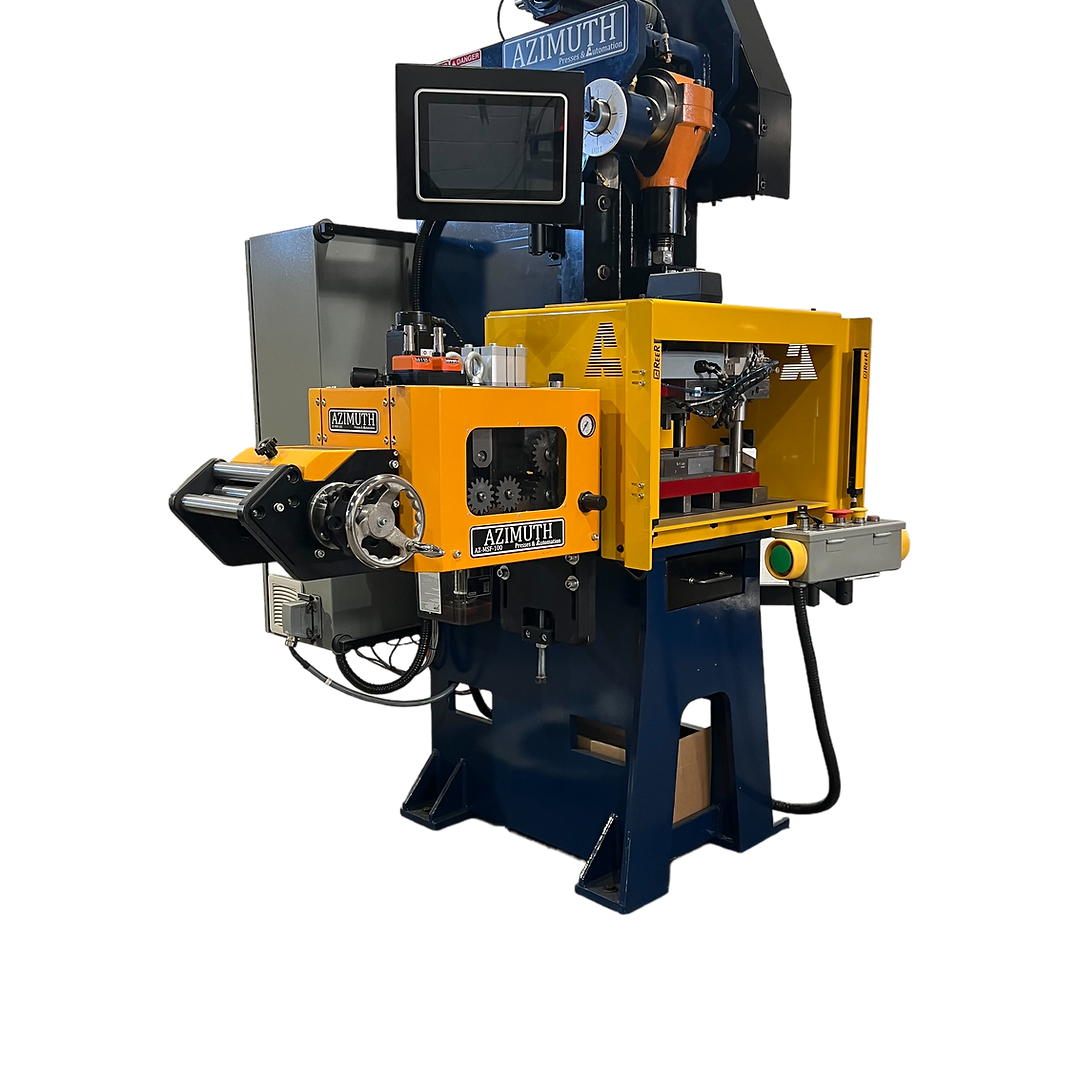

33-AC C-frame Air-clutch press
The 33-AC is a 33-ton C-frame mechanical press with an Italian OMPI air-friction clutch running at 100 SPM. With a 3-inch stroke, 8.5-inch throat depth, and 12-inch uprights clearance, it handles a solid range of stamping tasks. A simple, proven design that shops can count on day in and day out.
Choose options
33-AC
Sale price$0.00
| Specification | Default Title |
|---|---|
| Nominal Capacity | 33 |
| Rated Tonnage from BDC | 0.125 |
| Stroke Length | 3 |
| SPM | 100 |
| Max Die Set Height | 8.50 |
| Die Height Adjustment | 3.00 |
| Min Die Height Adjustment | 5.50 |
| Throat Depth | 8.50 |
| Distance Between Uprights | 12 |
| RAM Size F-B | 9.00 |
| RAM Size L-R | 14.00 |
| Shank Diameter | 1.5 |
| Bolster Size F-B | 14.00 |
| Bolster Size L-R | 24.00 |
| Bolster Surface Height | 39.5 |
| Overall Size L-R | 31.75 |
| Overall Size Height | 86.00 |
| Overall Size F-B | 39.50 |
| Shank Depth | 3 |
CORE TECHNOLOGY
OMPI Air-Friction clutch
Italian design clutch & brake
It is a pneumatic clutch/brake unit with considerably reduced dimensions and inertia. The clampings to the shaft are designed (and not adapted) for the locking device fitting on brake or clutch side as to meet customer requirements.
Integrated system
Quality & Innovation
At Azimuth Machinery, quality and innovation are at the heart of everything we do. Our presses and custom solutions are built using the latest technology and highest-quality materials, ensuring durability and performance. We are committed to continuous improvement and staying ahead of industry trends, so our clients benefit from cutting-edge solutions that drive their success.
