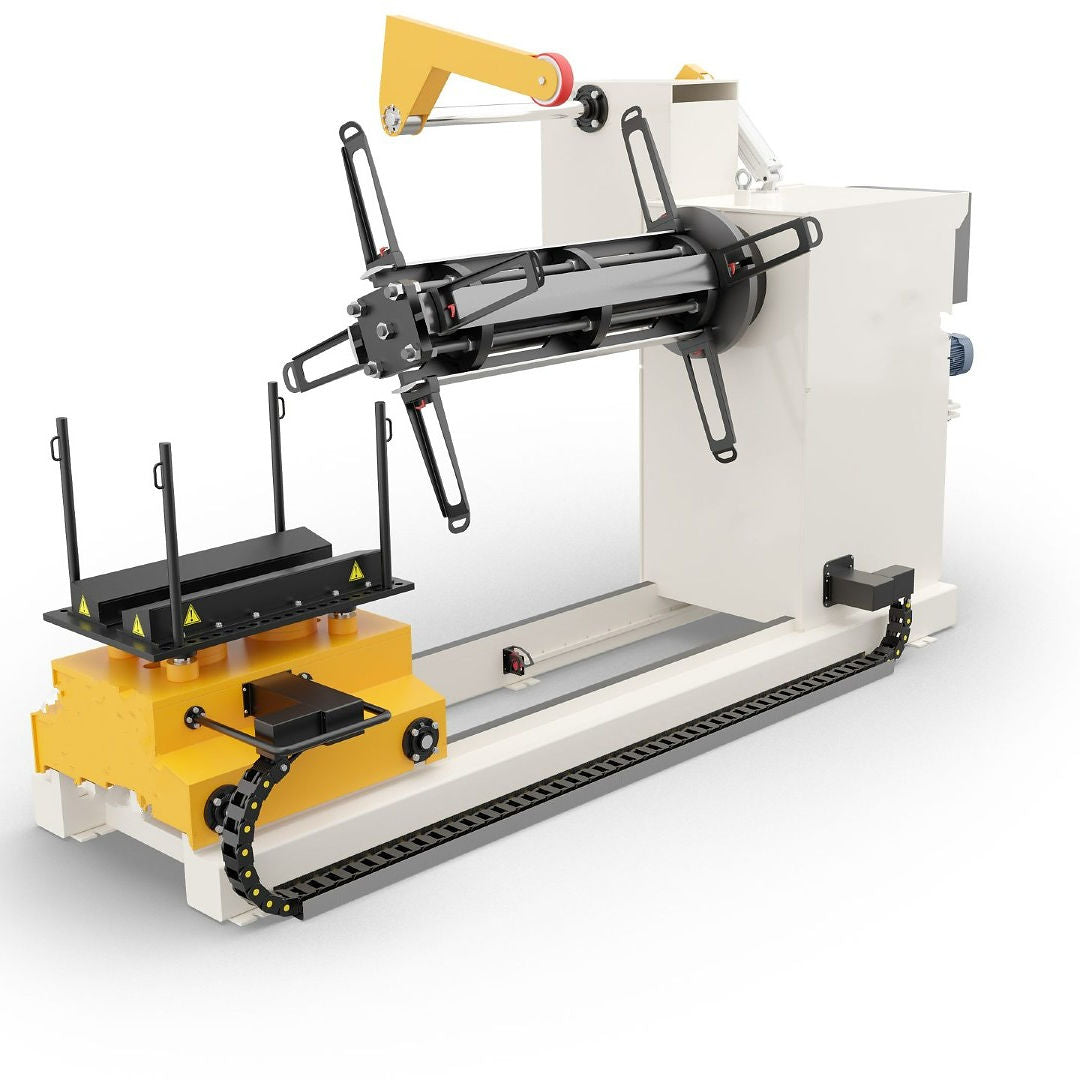

AZ-DH10
10T Motorized decoiler with hydraulic expansion
The AZ-DH10 is a 10-ton motorized decoiler with hydraulic mandrel expansion, built for coils up to 10,000 kg and widths to 59 inches. Its ABB VFD loop control and air caliper brake keep strip tension even across the full uncoil run, even as coil diameter and weight change significantly.
Choose options
AZ-DH10
Sale price$0.00
| Maximum thickness | 0,1875 |
| Minimun width | 1 |
| Maximum width | 31,5 |
| Feed rolls diameter | 0 |
| Feed accuracy | 0 |
| Straightener rolls diameter | 0 |
| Straighter type | |
| Maximun coil weight | 10000.0 |
| Max COIL OD | 59 |
CORE TECHNOLOGY
Hydraulic Expansion
Ease of operations
Hydraulic systems allow for easy and precise adjustments to accommodate different coil sizes and weights. Operators can quickly adapt the decoiler to handle various coil dimensions without extensive manual intervention or mechanical adjustments.
Braking system
Air caliper brake
Usiing a caliper brake, The braking system helps maintain the appropriate tension on the metal strip as it is unwound from the coil. Proper tension is critical to prevent issues such as wrinkling, deformation, or tearing of the metal.
Variable speed process
VFD integrated
Using the latest ABB drive system, Azimuth Decoiler allows a precise process. Every uncoiler comes with a loop sensing system
