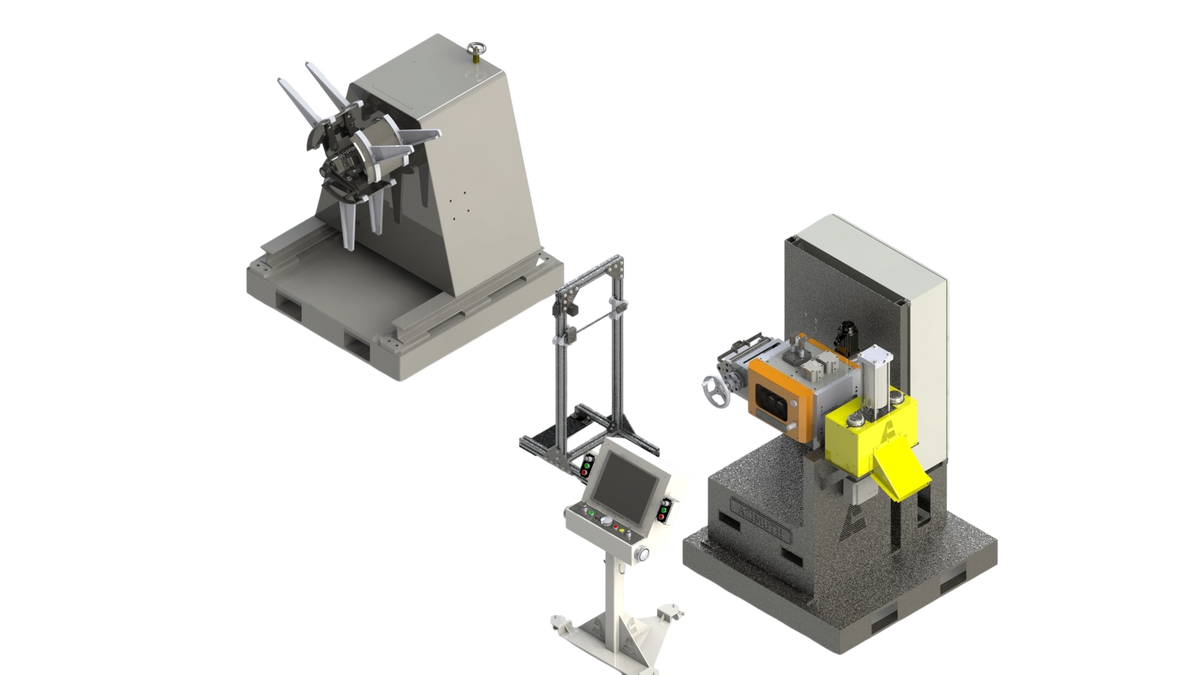

AZ-MiniCTL
Azimuth Cut-to-lenght system
The MiniCTL is a compact cut-to-length line for narrow coils, available in 4, 8, 16, 24, and 32 in widths (102, 203, 406, 610, 813 mm). It saves floor space and costs far less than a full-width line when your parts don't need the width.
Choose options
AZ-MiniCTL
Sale price$0.00
| Maximum thickness | 0,1875 |
| Minimun width | 29375 |
| Maximum width | 15,75 |
| Feed rolls diameter | 34375 |
| Feed accuracy | 0,000393701 |
| Straightener rolls diameter | 2677165354 |
| Straighter type | 4 over 3 |
| Maximun coil weight | |
| Max COIL OD | 0 |
CORE TECHNOLOGY
Compact system
More floor space
Azimuth servo straightener&feeder unit allows to save up to 30% in floor space
Motorized straightener process
Servo motorized process
The built-in gear system ensures that the straightening process does not slip, causing misfeeding.
Ease of integration
Built-in Interface
Azimuth Servo feed interface allows to easily interface with other equipment & controls your press within one main interface
