AZ1

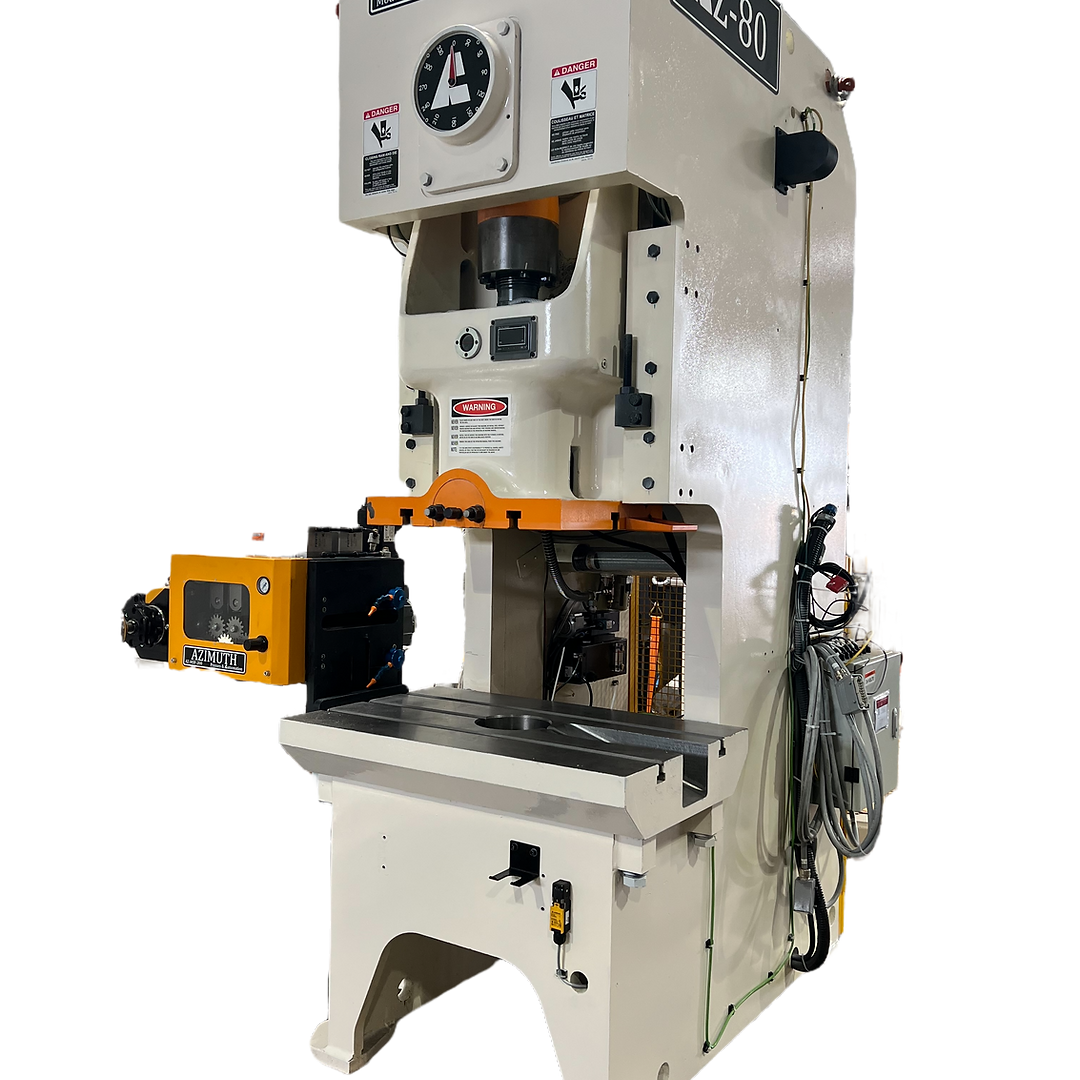

16 Tons single point gap Press
The AZ1 is a single-point gap frame mechanical press ranging from 16 to 440 tons. Fitted with an Italian OMPI air-friction clutch and hydraulic overload protection, it handles demanding stamping tasks with consistent speed from 20 to 150 SPM across all sizes. Reliable and built to last.
Choose options
AZ1
Sale price$0.00
| Nominal Capacity | 16 |
| Rated Tonnage from BDC | 0.0625 |
| Stroke Length | 2,375 |
| SPM | 120-150 |
| Max Die Set Height | 86,875 |
| Die Height Adjustment | 11,875 |
| Min Die Height Adjustment | 7.5 |
| Throat Depth | 63,125 |
| Distance Between Uprights | 18,125 |
| RAM Size F-B | 98,125 |
| RAM Size L-R | 12,625 |
| Shank Diameter | 15,625 |
| Bolster Size F-B | 1,21,875 |
| Bolster Size L-R | 2,75,625 |
| Bolster Surface Height | 2,75,625 |
| Overall Size L-R | 4,09,375 |
| Overall Size Height | 78.75 |
| Overall Size F-B | 5,90,625 |
| Weight | 3000 |
| Motor Power (kW) | 3 |
| Shank Depth | 2,375 |
CORE TECHNOLOGY
Hydraulic Overload
H.O.L.P Sysrtem
By preventing excessive loads and managing pressure spikes, the hydraulic overload pump extends the lifespan of the mechanical press. This reduces the frequency of maintenance and repairs, ultimately lowering operational costs and ensuring the press remains reliable over time.
OMPI Air-Friction clutch
Italian design clutch & brake
It is a pneumatic clutch/brake unit with considerably reduced dimensions and inertia. The clampings to the shaft are designed (and not adapted) for the locking device fitting on brake or clutch side as to meet customer requirements.
Integrated system
Quality & Innovation
At Azimuth Machinery, quality and innovation are at the heart of everything we do. Our presses and custom solutions are built using the latest technology and highest-quality materials, ensuring durability and performance. We are committed to continuous improvement and staying ahead of industry trends, so our clients benefit from cutting-edge solutions that drive their success.
