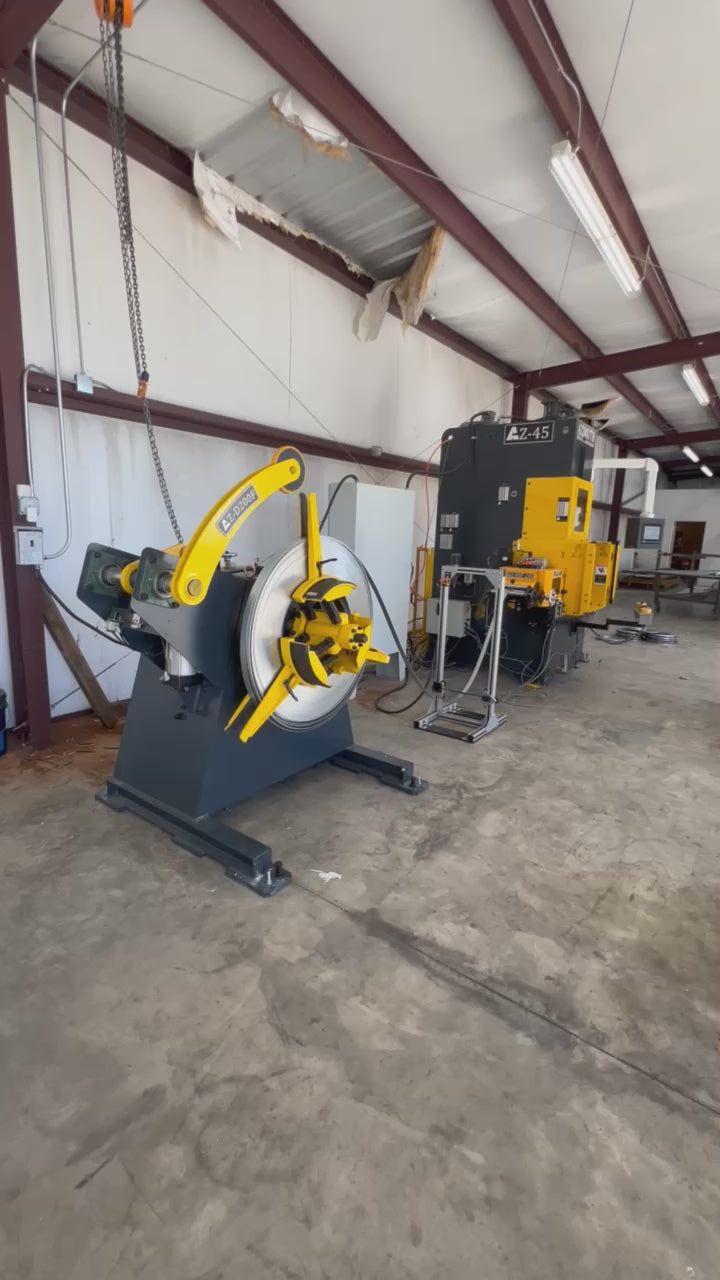

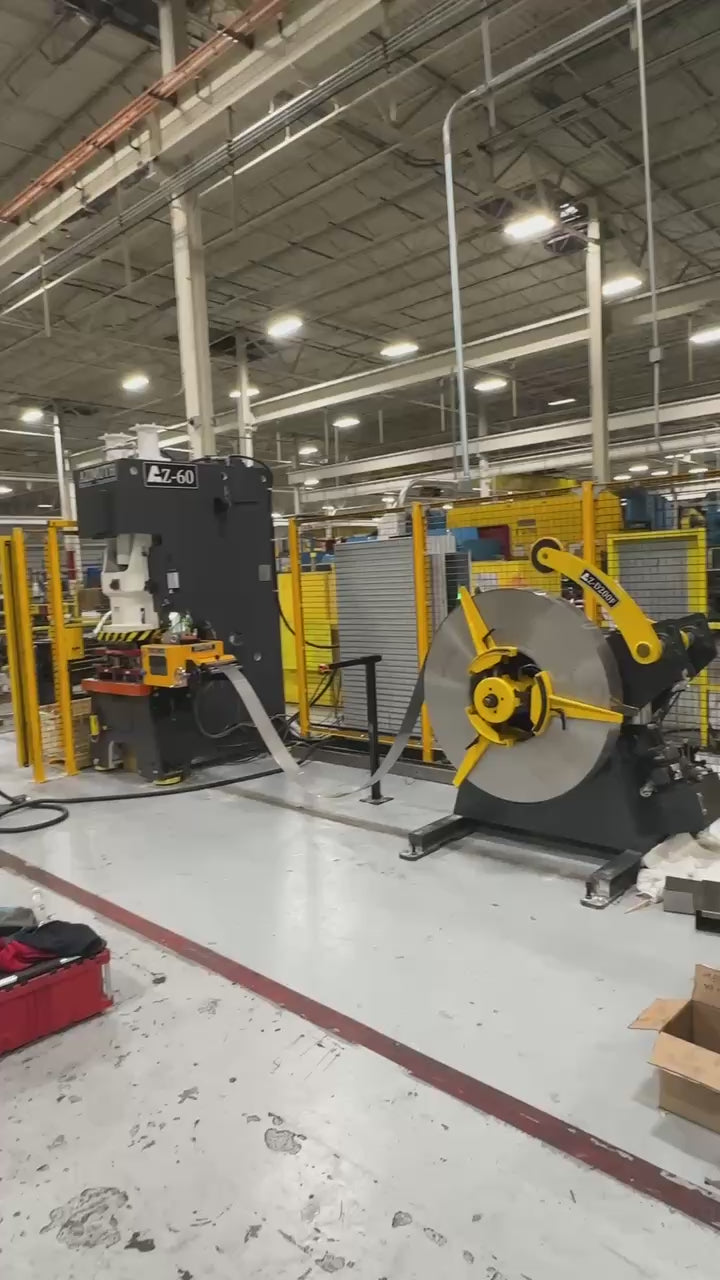

AZ1 stamping line
Azimuth stamping line solution

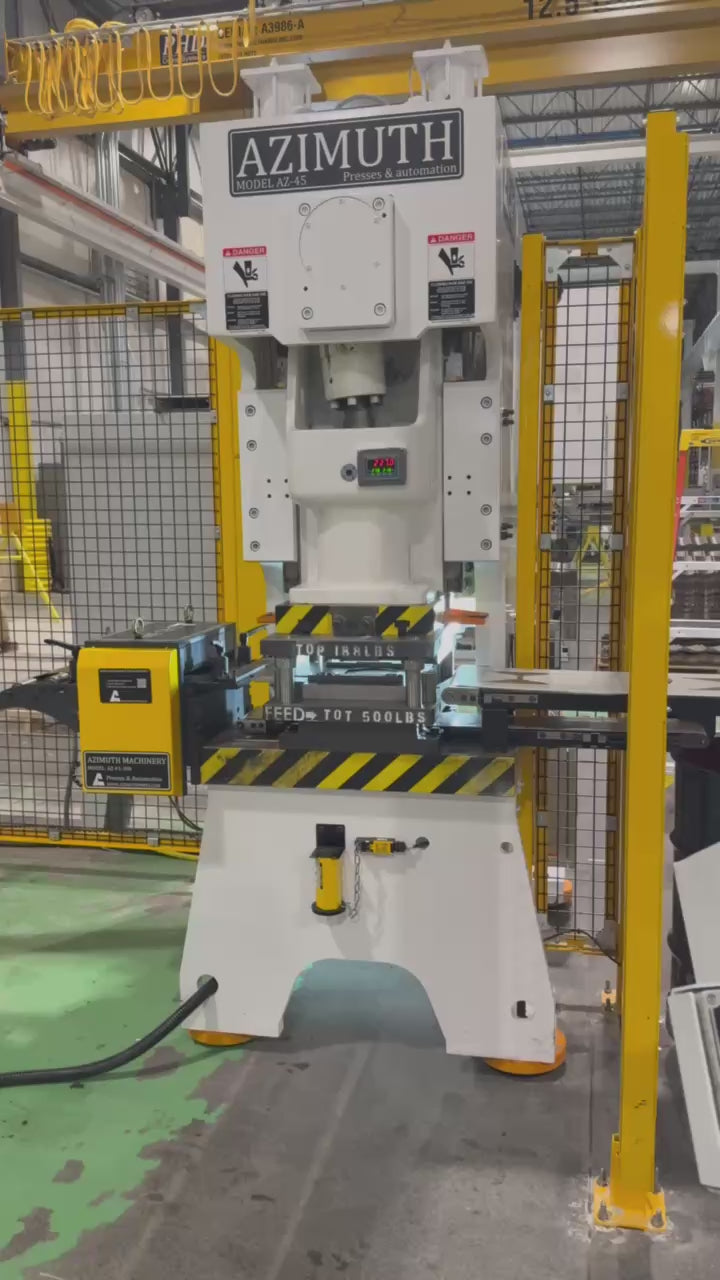

The AZ1 stamping line pairs our AZ1 single-point gap frame press with a feed system matched to your material. Feed options are selected based on material width and thickness, plus coil OD and ID.
The AZ1 is built for simpler tooling: blanking, forming, and short progressive dies with a few stations. The single connection point is best suited to loads centered under the slide. Longer progressive dies spread the load across the bolster, and that work calls for a two-point or straight-side press.
We start with the tooling. The die determines the tonnage, stroke, shut height, and feed length the line needs, so Azimuth designs the tooling first, then builds the right press, feed, and safety systems around it.
Choose options
AZ1 stamping line
Sale price$0.00
| Maximum thickness | 0,1875 |
| Minimun width | 29375 |
| Maximum width | 15,75 |
| Feed rolls diameter | 34375 |
| Feed accuracy | 0,000393701 |
| Straightener rolls diameter | 2677165354 |
| Straighter type | 4 over 3 |
| Maximun coil weight | |
| Max COIL OD | 0 |
CORE TECHNOLOGY
Easy process
Turnkey Solution
Send us your part drawing, your requirements, or even a rough sketch, and we'll come back with budget pricing for the complete process.
Motorized straightener process
Servo motorized process
The built-in gear system ensures that the straightening process does not slip, causing misfeeding.
Ease of integration
Built-in Interface

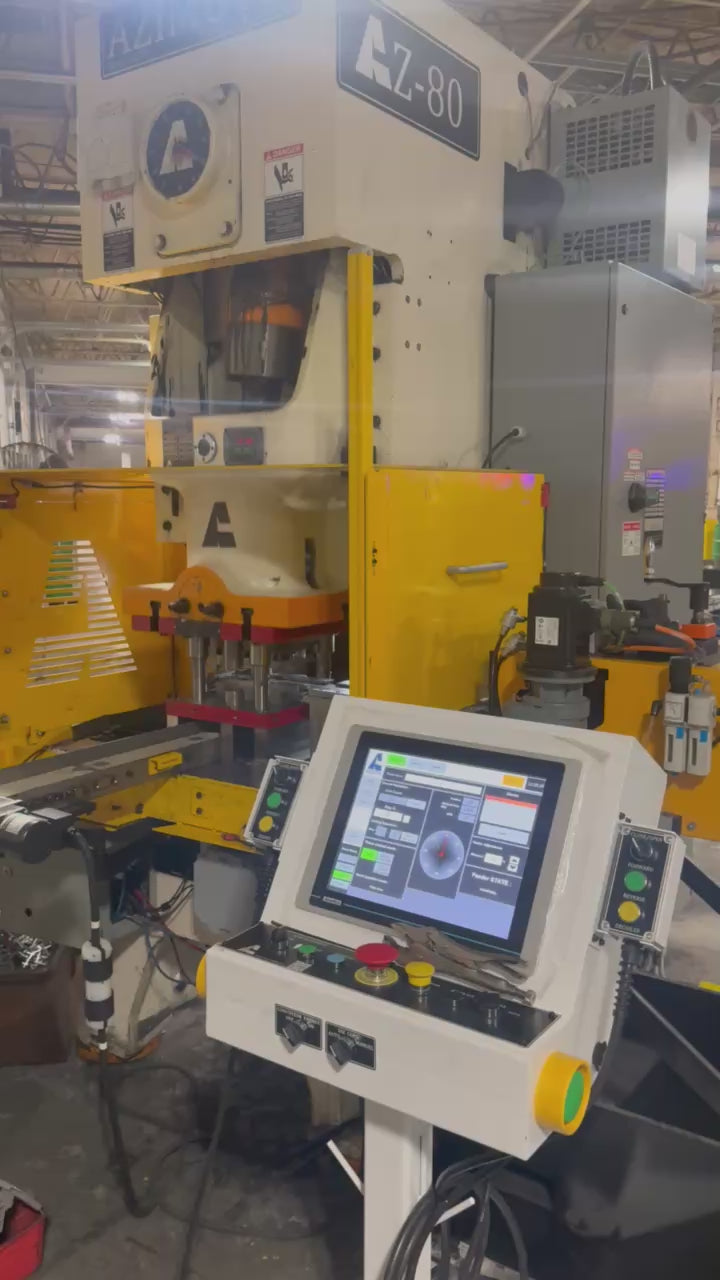

Azimuth Servo feed interface allows to easily interface with other equipment & controls your press within one main interface
