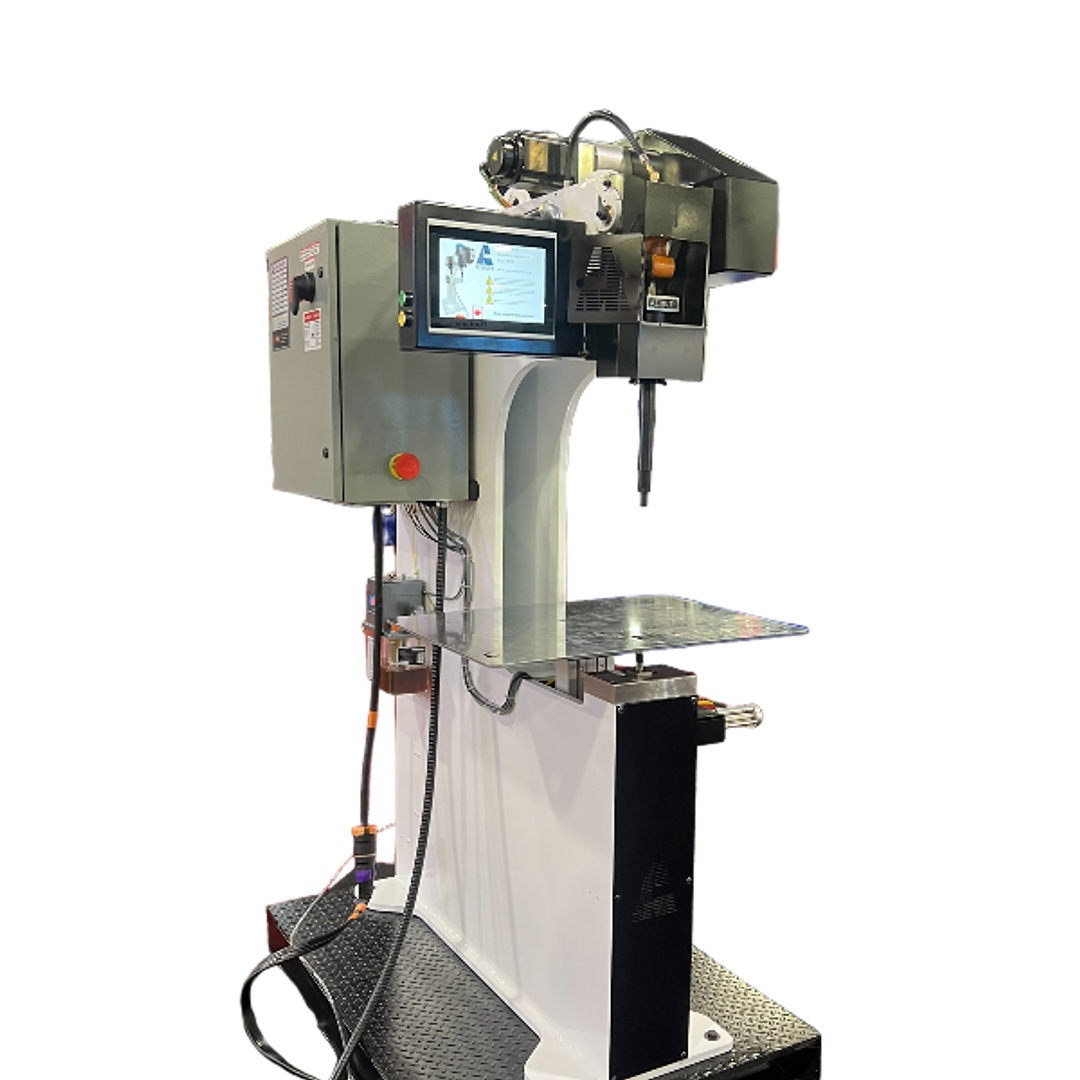

CL1830 GEN III
Servo motorized clinching press, Table type
The CL1830 GEN III is a table-type servo clinching press with an 18.25-inch throat depth running up to 700 SPM. The flat-table design gives operators easy access from multiple sides, while the Fingersafe patent protection and belt-driven servo motor make it a safe and productive choice for assembly clinching work.
Choose options
CL1830 GEN III
Sale price$0.00
| Specification | Default Title |
|---|---|
| Nominal Capacity | 6 |
| Rated Tonnage from BDC | 0.0625 |
| Stroke Length | 0.0625 |
| SPM | 30-700 |
| Max Die Set Height | N / A |
| Die Height Adjustment | N / A |
| Min Die Height Adjustment | N / A |
| Throat Depth | 18.25'' |
| Distance between Uprights | N / A |
| RAM SIZE F-B | N / A |
| RAM SIZE L-R | N / A |
| Shank dia | N / A |
| Bolster Size F-B | N / A |
| Bolster Size L-R | N / A |
| Bolster surface height | N / A |
| Overall Size L-R | 48 |
| Overall Size Height | 72 |
| Overall Size F-B | 48 |
| Weight | 2500 |
| Motor Power (kW) | 1.5 |
| Shank depth | N / A |
CORE TECHNOLOGY
Servo motorized press
Belt driven system
Our press design uses a timing belt driving our main crankshaft. This is a very cost effective & reliable system with easy maintenance
5 Years warranty
Best in industry
Enjoy peace of mind with our industry-leading 5-year warranty. Our machines are designed for exceptional quality and reliability, ensuring trouble-free operation and superior mechanical performance.
Safety integrated
Patent Fingersafe design
Equipped with integrated safety features, our machines prioritize your well-being while delivering top-notch performance.
