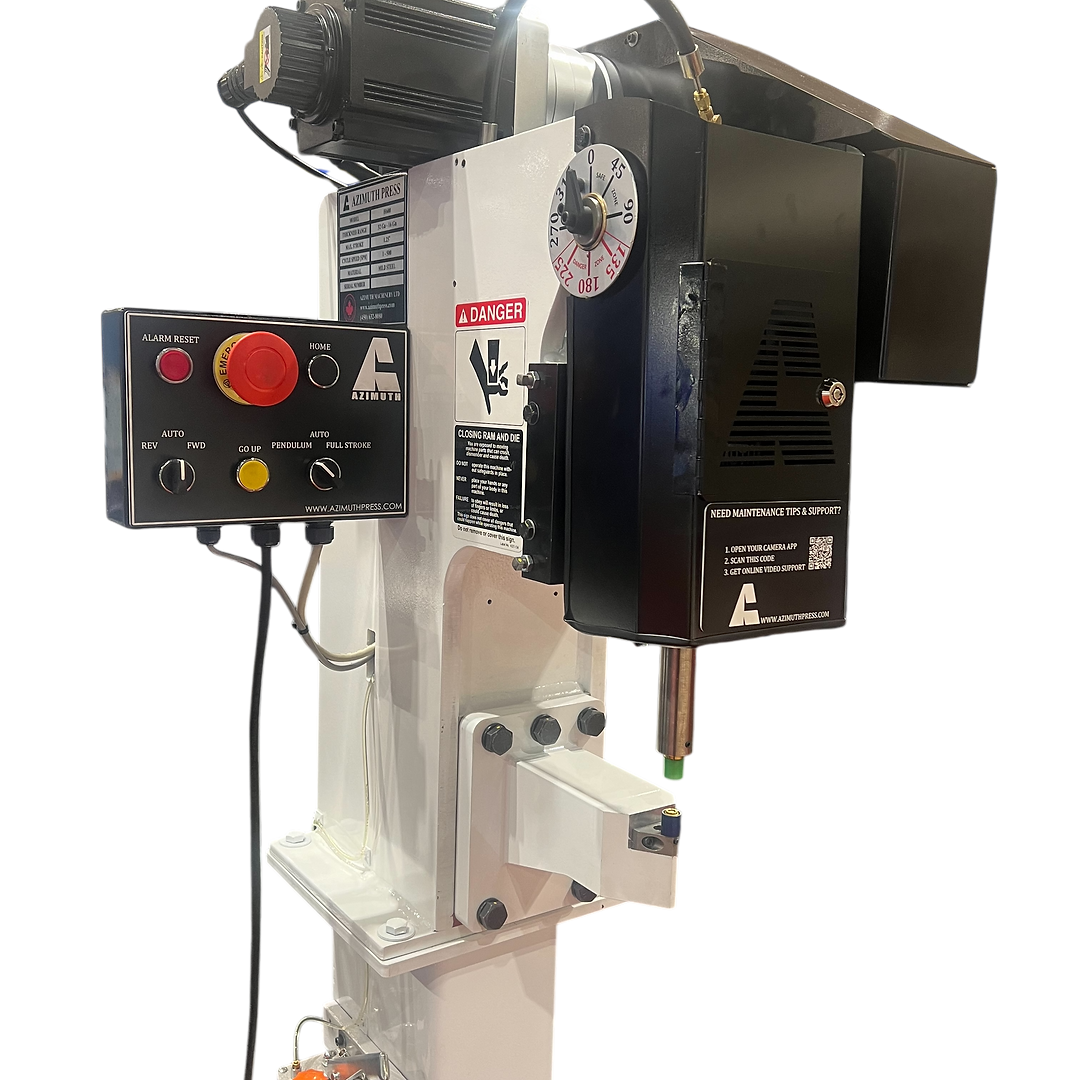

H608 GEN E - Swappable
Servo motorized clinching press, 8'' deep throat
The H608 GEN E Swappable is a 6-ton servo clinching press with an 8-inch deep throat and swappable tooling heads. Running from 30 to 500 SPM via a belt-driven servo motor, it offers quick changeovers without sacrificing cycle speed. A cost-effective option in the GEN series for versatile clinching work.
Choose options
H608 GEN E - Swappable
Sale price$0.00
| Specification | Default Title |
|---|---|
| Nominal Capacity | 6 |
| Rated Tonnage from BDC | 0.0625 |
| Stroke Length | 1.25 |
| SPM | 30-500 |
| Max Die Set Height | N / A |
| Die Height Adjustment | N / A |
| Min Die Height Adjustment | N / A |
| Throat Depth | 8'' |
| Throat Depth | N / A |
| Distance between Uprights | N / A |
| RAM SIZE F-B | N / A |
| RAM SIZE L-R | N / A |
| Shank dia | N / A |
| Bolster Size F-B | N / A |
| Bolster Size L-R | N / A |
| Bolster surface height | N / A |
| Overall Size L-R | 24 |
| Overall Size Height | 60 |
| Overall Size F-B | 32 |
| Weight | 450 |
| Shank depth | N / A |
CORE TECHNOLOGY
Servo motorized press
Belt driven system
Our press design uses a timing belt driving our main crankshaft. This is a very cost effective & reliable system with easy maintenance
5 Years warranty
Best in industry
Enjoy peace of mind with our industry-leading 5-year warranty. Our machines are designed for exceptional quality and reliability, ensuring trouble-free operation and superior mechanical performance.
Economical model
Cost effective machine
Our GEN E is the economical model in the GEN series. It features a simpler system while still maintaining excellent performance.
