Servo Press

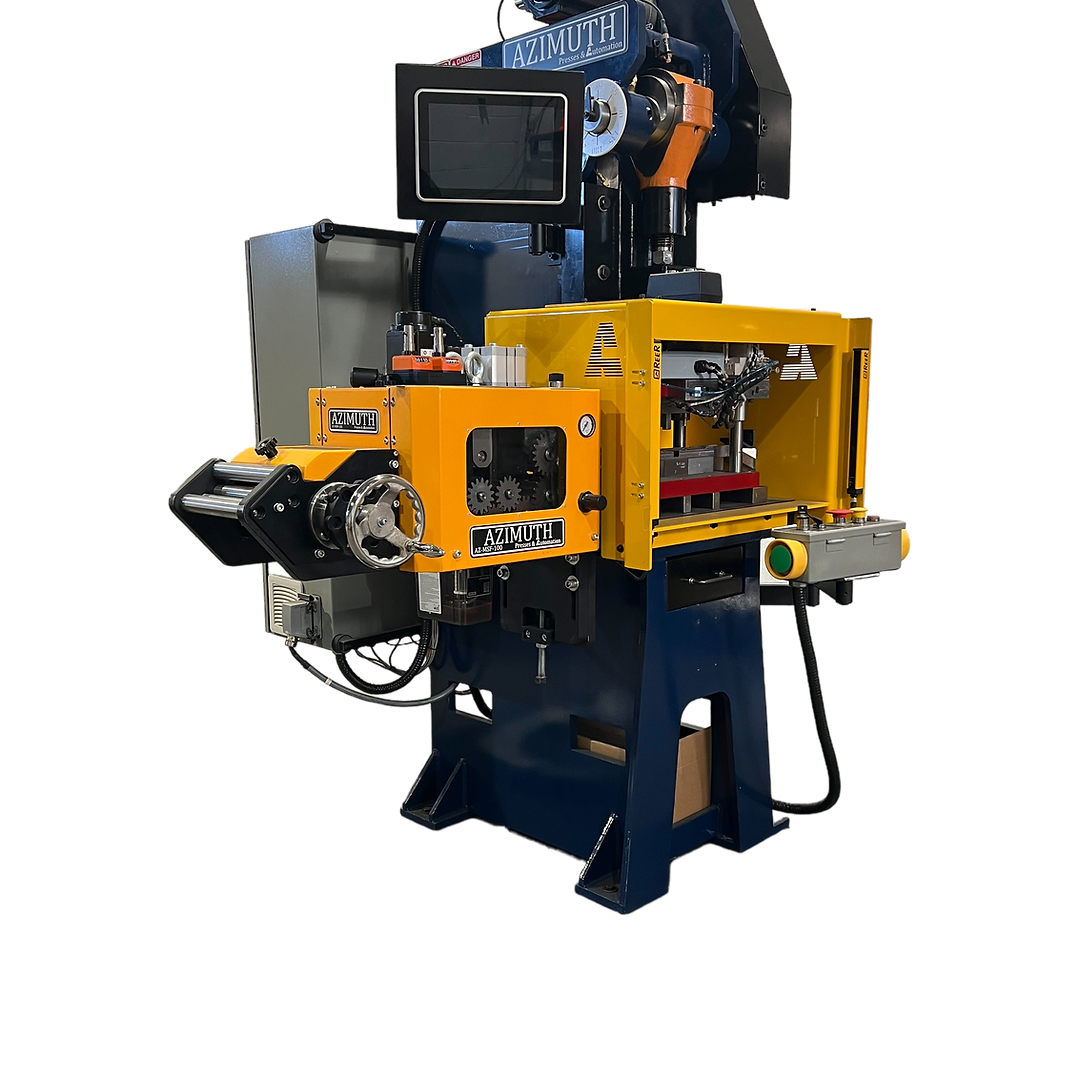

6 Tons servo press
The S-Series C-Frame Servo Press combines six models ranging from 6 to 33 tons, offering precision, speed, and reliable servo-driven performance for stamping, forming, assembly, and coining applications. With belt-driven servo motors, variable speed and precise position control, each model is built for consistent operation and compact shop-floor use. Backed by Azimuth Machinery's 5-year warranty.
Choose options
Servo Press
Sale price$0.00
| Specification | Default Title |
|---|---|
| Nominal Capacity | 6 |
| Rated Tonnage from BDC | 0,04 |
| Stroke Length | 1250 |
| SPM | 30-700 |
| Max Die Set Height | 5.63 |
| Die Height Adjustment | 1.25 |
| Min Die Height Adjustment | 4.38 |
| Throat Depth | 4.50 |
| Distance Between Uprights | 6 |
| RAM Size F-B | 5.50 |
| RAM Size L-R | 3.50 |
| Shank Diameter | 1.5 |
| Bolster Size F-B | 7.00 |
| Bolster Size L-R | 11.00 |
| Bolster Surface Height | 39.5 |
| Overall Size L-R | 25.25 |
| Overall Size Height | 63.62 |
| Overall Size F-B | 22.50 |
| Weight | 750 |
| Motor Power (kW) | 3 |
| Shank Depth | 3 |
CORE TECHNOLOGY
Servo motorized press
Belt driven system
Our press design uses a timing belt driving our main crankshaft. This is a very cost effective & reliable system with easy maintenance
5 Years warranty
Best in industry
Enjoy peace of mind with our industry-leading 5-year warranty. Our machines are designed for exceptional quality and reliability, ensuring trouble-free operation and superior mechanical performance.
Integrated system
Quality & Innovation
At Azimuth Machinery, quality and innovation are at the heart of everything we do. Our presses and custom solutions are built using the latest technology and highest-quality materials, ensuring durability and performance. We are committed to continuous improvement and staying ahead of industry trends, so our clients benefit from cutting-edge solutions that drive their success.
